Back Tension HT Coil Winding Machine Manufacturer

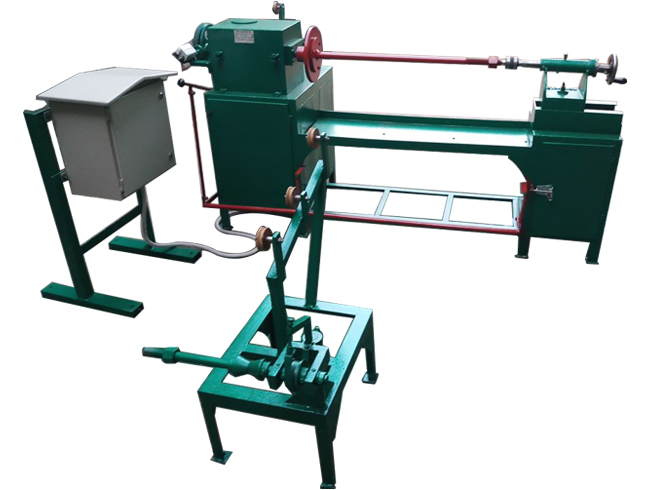

Back Tension HT Coil Winding Machine Back Tension HT Coil Winding Machine

"PCGL" high precision all geared coil winding machine fitted on a fabricated base frame, geared head is fitted with face plate, having radial slots for holding the winding formers. A foot pad is provided with machine for gradual increase & decreases the machine’s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine.

Specification:

  • Range of wire - 0.8–4 mm
  • Maximum diameter of coil - 300 mm
  • Layer width - 300 mm
  • Winding speeds approx. - 300 to 500 RPM
  • Diameter of face plate - 250 mm
  • Height of Center over floor - 950 mm
  • Motor - 1 H.P. 3 Phase
